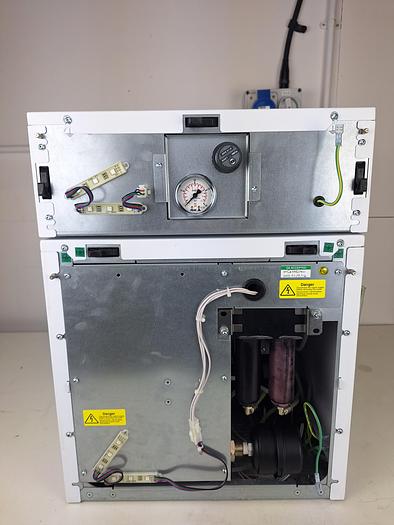

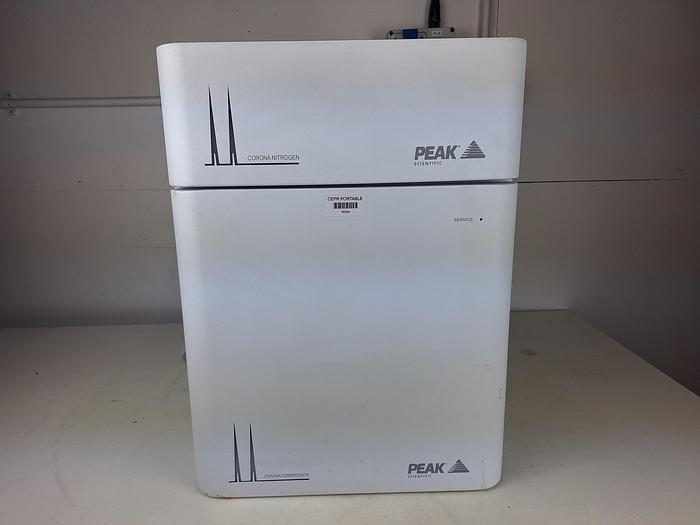

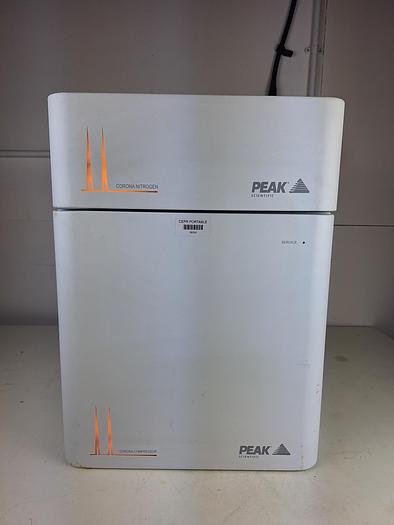

Peak Scientific Carona Nitrogen Generator paired with Air Compressor

This listing is for the Peak Scientific Corona Nitrogen Generator 1010 paired with the Corona Air Compressor.

The unit is in full working condition and is ready for immediate release.

System Details:

The Peak Scientific Corona Nitrogen Generator 1010, paired with the Corona Air Compressor, is engineered to meet the demands of labs requiring high-purity nitrogen, specifically designed for applications like chromatography. The Corona 1010 is ideal for the Thermo Scientific Corona Veo Charged Aerosol Detector and is also suitable for LC, HPLC, and UHPLC applications, providing nitrogen flows up to 5 L/min at 80 psi.

Key Features:

Maximum Gas Flow: 5 L/min

Maximum Output Pressure: 80 psi (5.5 bar)

Maximum Purity: <2% O2 at 5 L/min

Gas Outlets: 1 x 1/4” BSPP

Start-Up Time for Purity: 5 minutes

Operating Temperature Range: 5°C – 35°C

Heat Output: Up to 140 BTU/Hr

Voltage: 230 V

Frequency: 50/60 Hz

Power Consumption: 645 W

Additional Specifications:

Minimum Air Inlet Pressure: 7.6 bar / 110 psi

Minimum Air Inlet Flow: 30 L/min

Minimum Inlet Air Quality: ISO8573 – 1:2010 Class 1.4.1

Phthalates: None

Suspended Liquids: None

Design and Integration:

Compact Dimensions: 156 x 417 x 540 mm (WxDxH)

Weight: 12 Kg

Space-Saving Design: The compact design allows the Corona 1010 to seamlessly fit into any laboratory environment with limited space.

Dedicated Compressor Module: Engineered with a dedicated compressor for labs without in-house compressed air, offering flexibility for various laboratory configurations.

Flexibility for Labs:

The Corona 1010 provides a flexible solution for labs requiring nitrogen at high purity levels. This generator is primarily used for Charged Aerosol Detectors but is also ideal for a variety of chromatography and analytical techniques. It eliminates the need for external nitrogen cylinders and provides reliable nitrogen gas with minimal maintenance.

With its efficient and reliable performance, the Peak Scientific Corona 1010 offers an on-demand nitrogen supply that enhances laboratory productivity while meeting high-purity standards.
