QuattroFlow QF15ACUEGN-UK Diaphragm Pump

QuattroFlow QF15ACUEGN-UK Diaphragm Pump

£1,500 (GBP)

Location:Duxford, United Kingdom

Available quantity:2

orCall +44 (0) 208 123 1082

Description

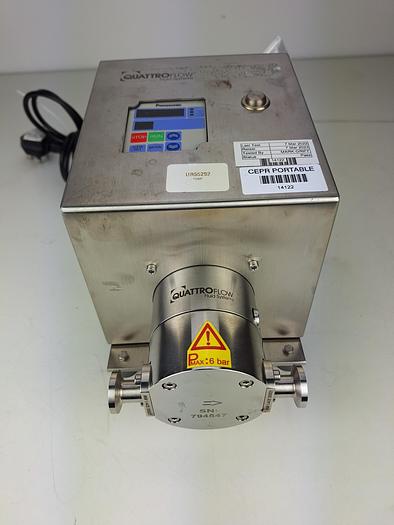

This listing is for 1 of 2 QuattroFlow QF15ACUEGN-UK Single-use Pump Diaphragm Pump.

The unit is in full working condition and is ready for immidate realese.

The QuattroFlow QF150 Diaphragm Pump is an efficient, 4-piston pump designed for handling water-like fluids in various sectors, including pharmaceuticals, biotech, food, and cosmetics. Here’s a detailed overview of its features, specifications, and applications:

Key Features:

Flow Rates:

Max Flow Rate:

3° Eccentric Shaft: Up to 100 l/h (1.67 l/min)

5° Eccentric Shaft: Up to 180 l/h (3 l/min)

Min Flow Rate:

Both shaft angles start at 1 l/h (0.017 l/min).

Pressure Ratings:

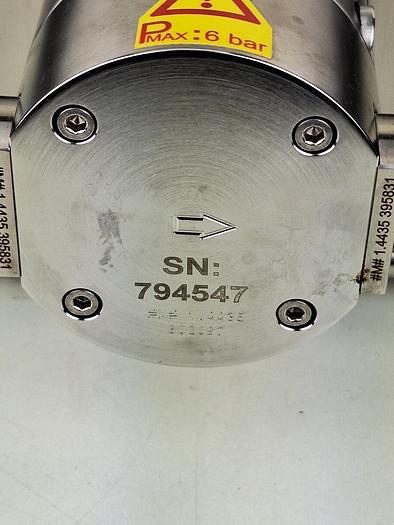

Maximum operating pressure of 6 bar (87 psi) for fluids < 40°C; 4 bar (58 psi) for fluids > 40°C.

Temperature Ratings:

Maximum fluid temperature: 80°C (176°F).

CIP (Clean-in-Place) and SIP (Sterilize-in-Place) capable up to 90°C (194°F) and 130°C (260°F), respectively.

Suction Lift:

3° Shaft: 1-1.5 m (3.2-4.9 ft)

5° Shaft: 2-3 m (6.6-9.8 ft)

Volume Specifications:

Approximate volume per revolution:

3°: 0.72 ml

5°: 1.2 ml

Total filling volume (without connectors): 15 ml.

Material Construction:

Wetted Materials: SS316L (pump housing, valve plate), Santoprene (diaphragms), EPDM (valves, O-rings).

Non-Wetted Materials: SS316L for bearing housing and base plate.

Dimensions and Weight:

Length: 257 mm (10.2 in); Width: 164 mm (6.5 in); Height: 185 mm (7.2 in); Weight: 9.8 kg (22 lb).

Slight variations in dimensions and weight depending on models.

Advantages:

Versatility: The QF150 can handle a wide range of fluids, including:

Biological Solutions: Proteins (e.g., IgG, monoclonal antibodies), enzymes, and vaccines.

Suspensions and Polymers: Silicon, latex, and chromatography media.

Cell Suspensions: Bacteria, yeast, algae, and mammalian cells.

Food Products: Dairy products and gelatine.

Low-Shear Design: Ensures gentle handling of sensitive materials, maintaining their stability and functionality.

CIP/SIP Capable: Facilitates easy cleaning and sterilization, crucial for maintaining hygiene in production environments.

Compact and Lightweight: Easy to integrate into laboratory or production settings without occupying much space.

Specifications

ManufacturerQuattroFlow

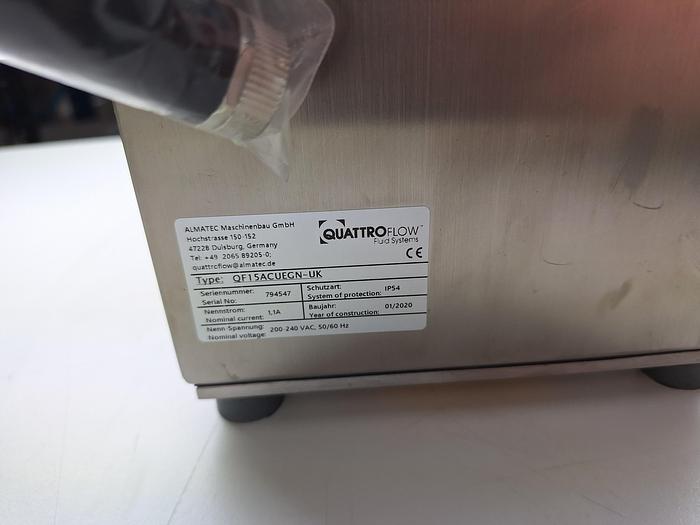

ModelQF15ACUEGN-UK
ConditionUsed
Stock Number55292
