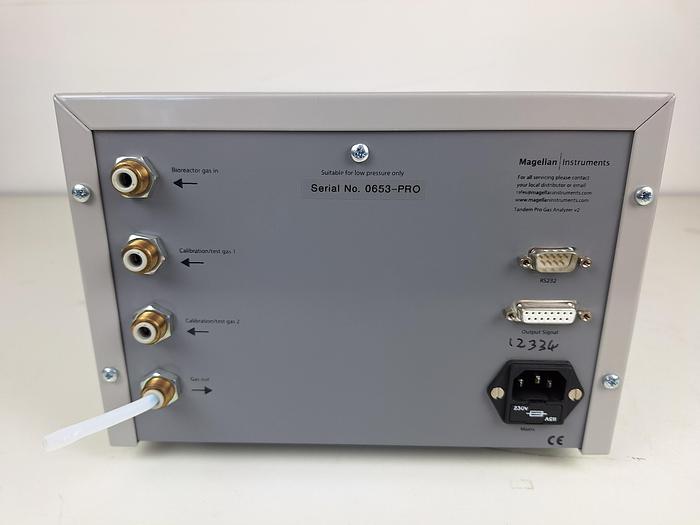

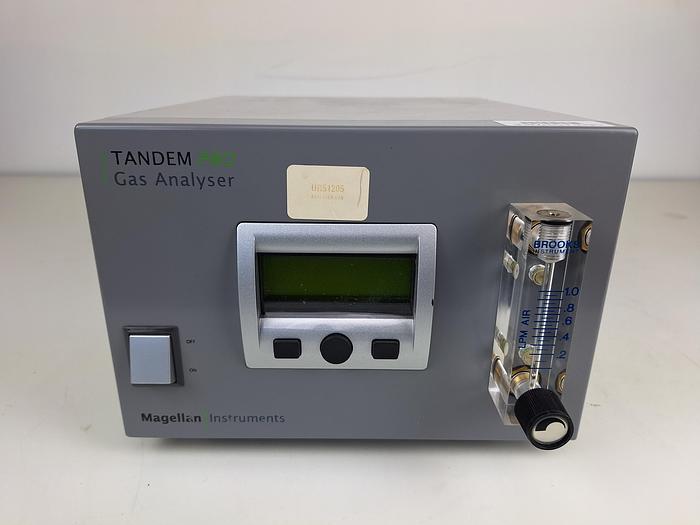

Magellan Instruments Tandem Pro Gas Analyser

This listing is for a Magellan Instruments Tandem Pro Gas Analyser.

The unit is in full working condition and is ready for immidate realese.

The Magellan Instruments Tandem Pro Gas Analyzer is a self-contained O2 & CO2 gas analyzer. The PRO system comes with an internal gas pump and programmable display. It includes calibration functions, error reporting and dual 4-20mA outputs. An RS232 output is included for integration into control systems.

Benefits:

Greater understanding of your cells and processes

Physiological state measurement on-line

Scale-up and scale-down predictions

Batch variation studies: feature analysis

Metabolic flux analysis and mass-balance calculations

Accurate fed-batch control

Batch variation studies: anomaly analysis

Metabolic activity based feeding

Dedicated, continuous, standard signals for all your reactors

On-line information, allows real-time calculation of RQ, CER, OUR, growth rate, KLa, etc.

0-10V and 4-20mA, with RS232 on PRO & Multiplex

Integrates to any reactor size (250ml – 100m3)

Specifications:

Feature CO2 O2

Measurement Principle: Infrared Absorption Electrochemical

Range: 0-5%, 0-10%, 0-20% 0-30%, 0-50%, 0-100%

Resolution: 0.01% 0.01%

Accuracy: ±2% of full scale ±2% of full scale

Drift: <0.05% / month full scale <0.05% / month full scale

Operating Temperature: 0 – 45°C 0 – 45°C

Temp. Compensation: Included 0.02%/°C

T90 Response Rate: <50 secs <10 secs
