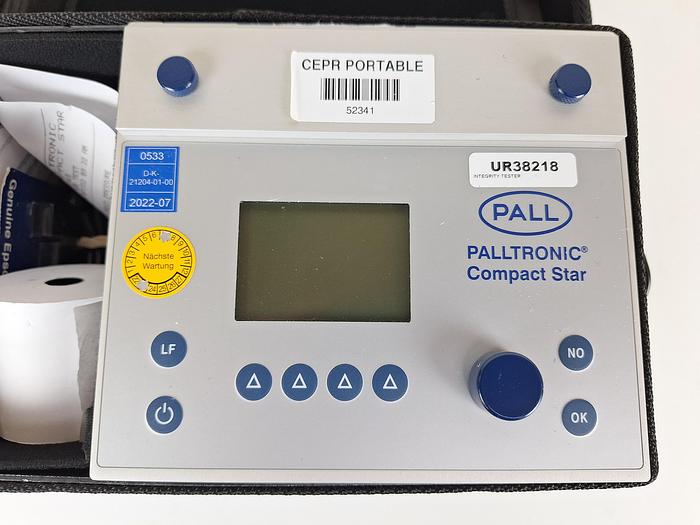

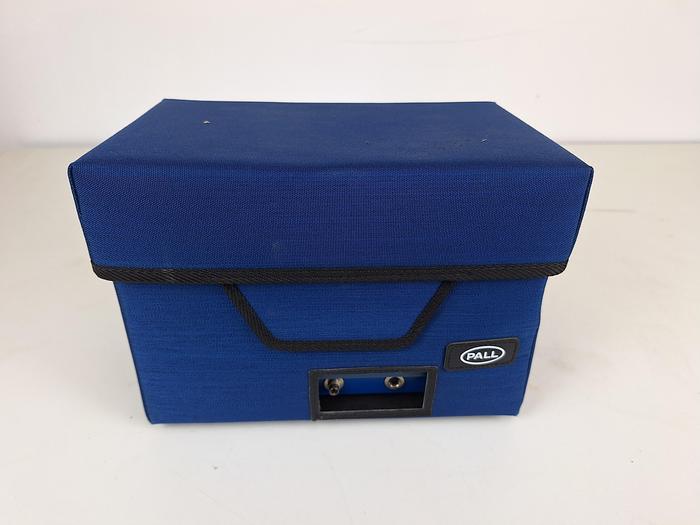

PALL Palltronic Compact Star

This listing is for a PALL Palltronic Compact Star.

The unit is in full working condition and is ready for immidate realese.

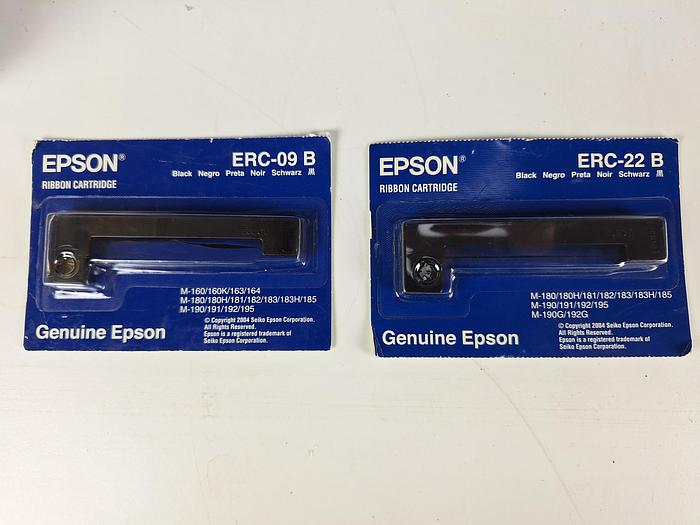

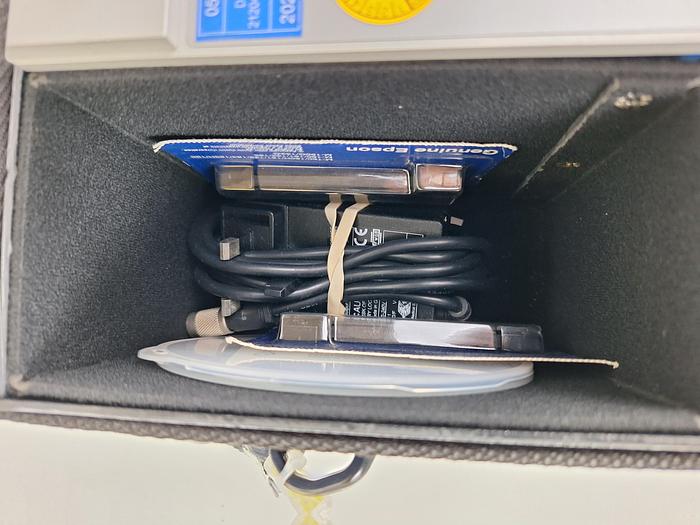

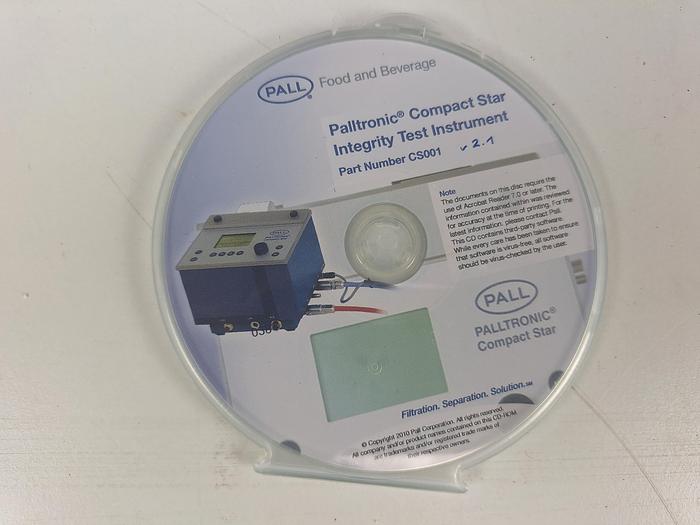

Supplied with 2 replacment Epsom Ribbon Cartridges and software disk.

An automated integrity test, whether forward flow or pressurehold, is internationally acknowledged as a truly objective and non-destructive method for determining if a filter meets microbial re-moval specifications and is correctly installed. Test results providea clear and accurate indication of a filter’s integrity prior to its use.

Integrity testing with the Palltronic Compact Star device is reliable,cost-effective, and operator-friendly. The unit is designed to per-form a Pressure Hold Test, a nondestructive method that measurespressure decay over a period of time. The test involves automati-cally pressurizing the filter housing at a predetermined level, allow-ing the pressure to stabilize. The unit then takes the test measure-ment and depressurizes the assembly through the vent valve. Fullyautomated, the Palltronic Compact Star device eliminates the vari-ability of test results that can occur with manual systems. It pro-vides a simple, fast, and objective check of filter integrity

Test method (test pressure): Pressure Hold TestMeasuring range:50 mbar – 6000 mbar (0.7 psi – 87 psi)Pressure supply:max. 8000 mbar (87 psi)Min. 1000 mbar (14.5 psi) over test pressureThe pressure supply has to be clean and dry(<95% humidity and no condensation)Resolution:1 mbar (0.0145 psi)Accuracy of the pressure transducer:0.5% FS (FS=6000 mbar, 87 psi)Display:LCD Display (56 x 38 mm or 2.2 x 1.5 in, 8 lines)Printer :57 mm (2.24 in) width, normal paperMemory capacity:1,000 test results250 test programs Memory retained independent of thepower supplyElectrical connections:Input for chargerUSB for data transfer to a PCProfibus for remote control on requestOther for remote control on special requestExternal vent valve outputPneumatic connections:Gas in: Stäubli* male connectorGas out : Stäubli* female connectorAutomatic air exhaustElectrical supply:Battery: 4.8 V, 8.5 AhRecharging time: 5 hrs maximumBattery autonomy: ca 60-80 testsPower supply and battery charger:100-240V, 50-60 Hz, exchangeablemain plug system (EURO; UK, USA/Japan, Australia, rest of the world)IP protection:IP54Storage temperature range :0 – 45°C (32 -- 113°F)Operating temperature range:2 – 40°C (35.6 -- 104°F)Dimensions and weightSize:D x W (incl. connectors) x H 160mm x 182mm (200mm) x 160mm (6.3" x 7.2" (7.9") W x 6.3" H)Weight:Unit Weight: 4.6 kg (10.11 lbs) Total Weight: 6.4 kg (14.11 lbs) - Case withaccessories
