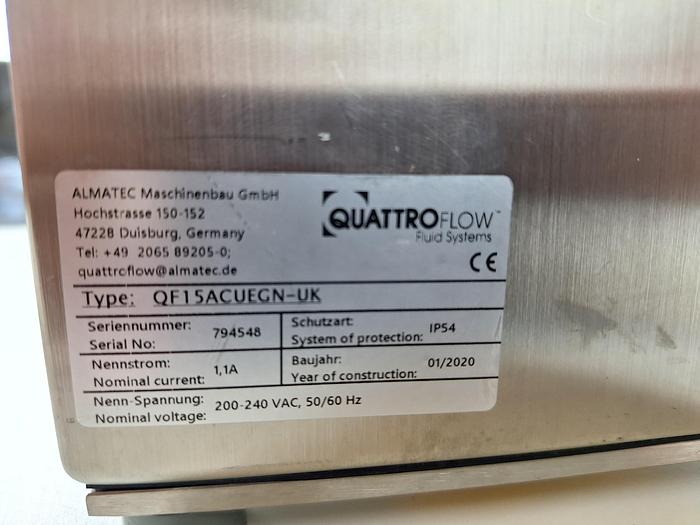

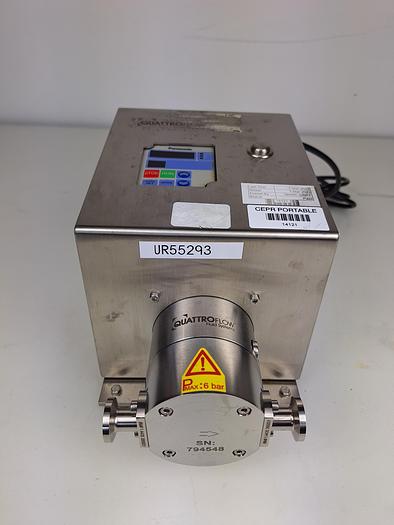

QuattroFlow QF150 Diaphragm Pump

This listing is for a QuattroFlow QF150 Diaphragm Pump.

The unit is in full working condition and is ready for immidate realese.

The Quattroflow 150S is a 4-piston Diaphragm pump, which is mainly used to pump water-like fluids

that are typically handled in research-, pilot plant- or production facilities of the pharmaceutical, biotech,

food or cosmetic research centers or plants.

Examples:

• Solutions containing proteins (albumin, IgG, Clotting factors, monoclonal antibodies, enzymes,

vaccines.)

• Solutions of polymers or suspensions (silicon, latex, chromatography media)

• Cell suspensions (bacteria, yeast, algae, fungi, mammalian cells)

• colloidal solutions

• Suspensions of viruses or phage

• Dairy products

• Gelatine

• Supplements and ingredients for cosmetic and food

Flow rate max.:

Eccentric shaft 3° l/h (lpm) 100 (1.67) 100 (1.67)

Eccentric shaft 5° l/h (lpm) 180 (3) 180 (3)

Flow rate min.:

Eccentric shaft 3° l/h (lpm) 1 (0.017) 1 (0.017)

Eccentric shaft 5° l/h (lpm) 1 (0.017) 1 (0.017)

Pressure:

Temperature of fluid < 40°C bar (psi) 6 (87) 6 (87)

Temperature of fluid > 40°C bar (psi) 4 (58) 4 (58)

Temperature max.:

Fluid °C (°F) 80 (176) 80 (176)

CIP °C (°F) 90 (194) 90 (194)

SIP °C (°F) 130 (260) 130 (260)

Autoclave °C (°F) 130 (260) 130 (260)

Suction lift dry at: 3000 rpm 3000 rpm

Eccentric shaft 3° m (ft) 1-1,5 (3.2-4.9) 1-1,5 (3.2-4.9)

Eccentric shaft 5° m (ft) 2-3 (6.6-9.8) 2-3 (6.6-9.8)

Volume specifications:

Approximated volume per revolution at

free output ml 0,72 (3°)

1,2 (5°)

0,72 (3°)

1,2 (5°)

Filling volume without connectors ml 15 15

Residual volume (after idle with highspeed motor) ml 1-3 1-3

Product wetted surface (approx.) cm² (inch²) 112 (17) 112 (17)

Speed range pump rpm 10-3000 10-3000

Connection specification inlet

(standard)

Connector " 1/4" TC 1/4" TC

Flange diameter mm (inch) 25 25

Internal diameter mm (inch) 4,7 4,7

Connection specification outlet

(standard)

Connector " 1/4" TC 1/4" TC

Flange diameter mm 25 25

Internal diameter mm (inch) 4,7 (0.19) 4,7 (0.19)

Position of connectors Inline Inline

Number of flow directions 4 4

Diameter drive shaft mm 7 7

Product wetted materials (standard):

Pump housing SS316L SS316L

Valve plate SS316L SS316L

Diaphragms Santoprene Santoprene

Valves EPDM EPDM

O-rings EPDM EPDM

Non-product wetted materials

(standard):

Pump housing SS316L SS316L

Bearing housing SS316L SS316L

Base plate SS316 SS316

Hood SS316 SS316

Dimensions pump with motor and

housing:

Length mm (inch) 257 (10,2) 277 (10-91)

Width mm (inch) 164 (6,5) 200 (7,87)

Height mm (inch) 185 (7,2) 195 (7,67)

Weight pump with motor and housing kg (lb) 9,8 (22) 11,2 (25)

IP protection class pump IP 54 54

Operating temperature range °C (°F) 0…40 (32…104) 10…30 (50…86)
