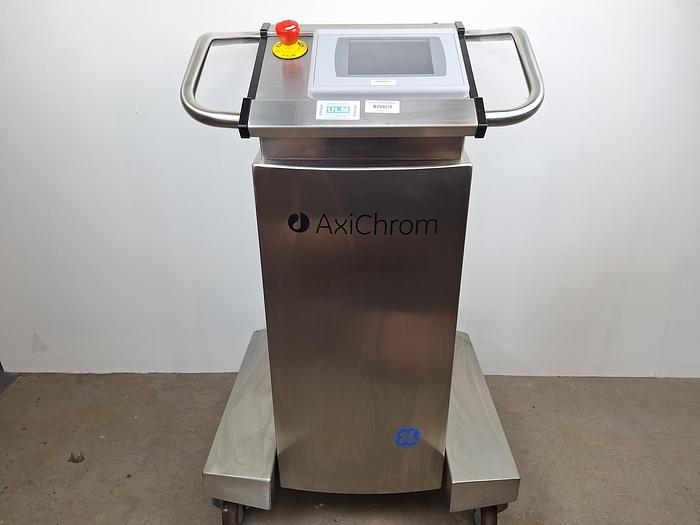

GE Healthcare AxiChrom Master 300-1600 Control Unit

This listing is for a GE Healthcare Control Unit AxiChrom Master 300-1600.

The unit is in full working condition and is ready for immidate realese.

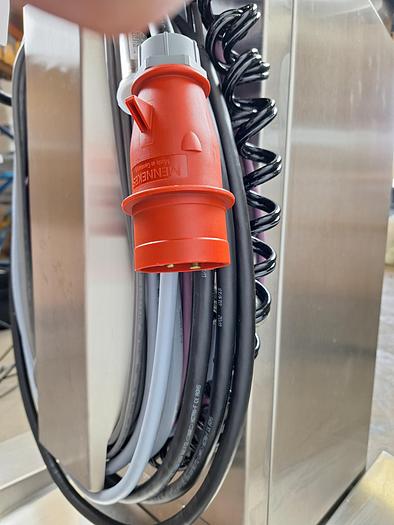

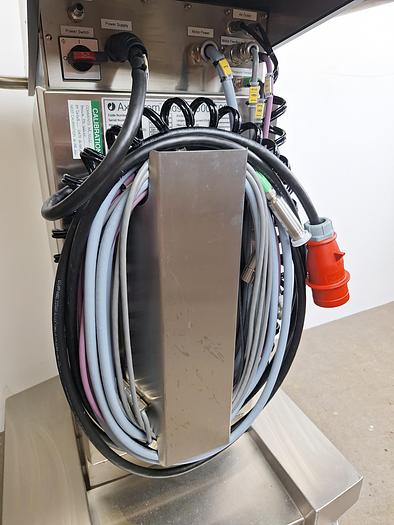

Supplied with cables.

The GE Healthcare Control Unit AxiChrom Master 300-1600 is a vital component for managing chromatography columns in the life science industry. Despite being used and having a minor error, this unit is designed to preprogram automated methods for packing, unpacking, priming, and maintenance to simplify column handling. It is configured to satisfy compatibility requirements for the AxiChrom chromatography columns from 300 to 1600 mm. This control unit can be integrated via Profibus into UNICORN or a higher automation system, such as the DeltaV Distributed Control System. It can control up to ten individual columns and is a valuable asset in laboratories for chromatography applications. The advanced functionalities, integration capabilities, and ease of use make it an essential tool for chromatography column management.

Key Features

Preprogrammed automated methods for packing, unpacking, priming, and maintenance

Integrated Profibus connectivity

Control up to ten individual columns

Specifications:

Complete Packsize: 1

Width: 670 mm

Depth: 630 mm

Height: 1090 mm

Foot Print: 630 x 670 mm

Weight: 90 kg

Wetted Part: No

EMC: IEC/EN 61326-1, Emission according to CISPR 11, Group 1, class A, CFR 47 FCC Part 15B, class A

Voltage: 380 - 480 V

Frequency: 50/60 Hz

Air Supply: 5.5 - 7 bar g. Clean dry air

Protection Class: IP 56 / NEMA 4X

Weight

Metric: 90 kg

Imperial: 198.42 lb

Dimensions

Metric: 1090 cm x 670 cm x 630 cm

Imperial: 42.91 in x 26.38 in x 24.8 in

Harmonized Code

903180

Harmonized Code Details

903180 - Measuring or checking instruments, appliances and machines, not specified or included elsewhere in this chapter; profile projectors
