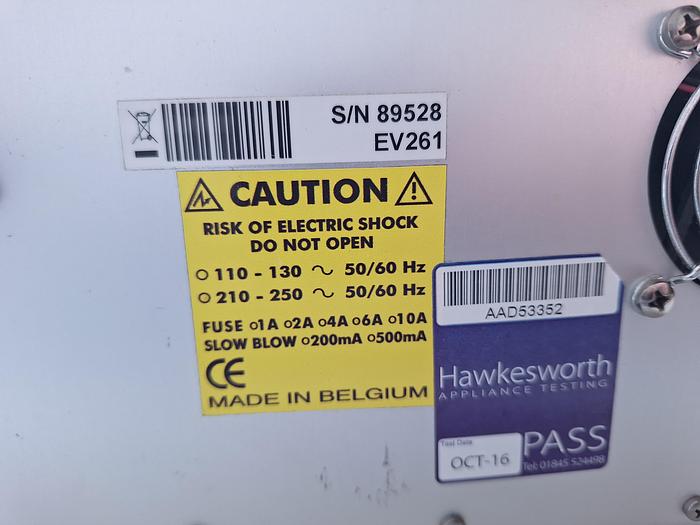

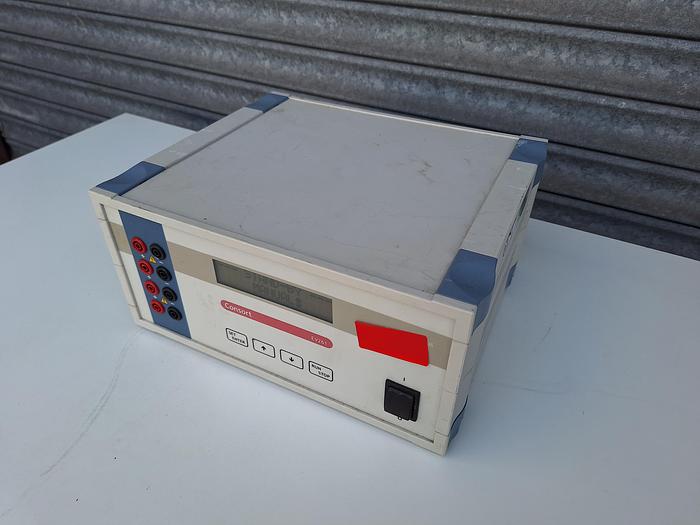

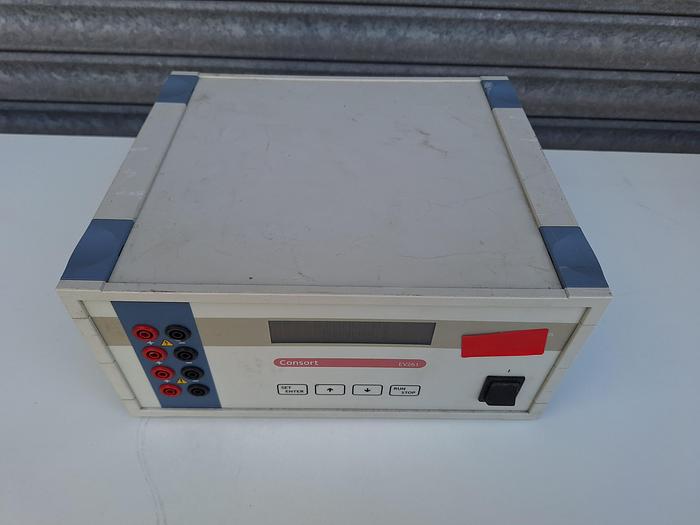

Consort EV261 Power Supply

This listing is for a Consort EV261 Power Supply

All Consort Maxi Series (EV200) power supplies have four output terminals for up to four simultaneous runs. Powerful microprocessor control allows complex programming, while manual mode permits the setting of voltage, current, power and time for routine electrophoretic runs. The parameters may also be changed temporarily without interrupting the run.

Programming–up to 9 different programs, each with 9 steps, can be stored in the nonvolatile memory for future recall.

Timer–can be set to automatically terminate the run and sound an alarm when the allocated time or volt hours has elapsed.

Automatic cross-over–each model has constant voltage, constant current and constant power capabilities with automatic cross-over while showing which parameter is kept constant.

Automatic recovery after mains failure–after restoration of power, the instrument will automatically continue the run for the remaining time.

Data Transfer–optional data acquisition/control software for PC is available to visualise and examine the stored run details, store and program the methods, add notes to the run, identify the unit, copy or delete programs in the unit's memory.

Safety precautions –the AC line is automatically disconnected from the high voltage transformer when a ground leakage path is detected protecting the user from potential shock. Other safety features include protection against any overload including accidental short circuit of the output and voltage increases smoothly.
